Why Choose DTS Water Spray Retort Machine?

Accurate temperature control, excellent heat distribution

Utlizing micro-cooling system to ensure highly clean packaging, non secondary pollution

Energy saving and environmental protection-A small amount of steam cunsumption
• Low noise, create a quiet and comfortable working environment.
• Unlike pure steam sterilization, DTS steam water spray retorts do not need to vent before heating, which greatly saves steam loss and save about 30% of steam.

Small amount fo process water, excellent heat distribution

HACCP and FDA/USDA compliant

Product process and prodcut quality uniformity and stability.

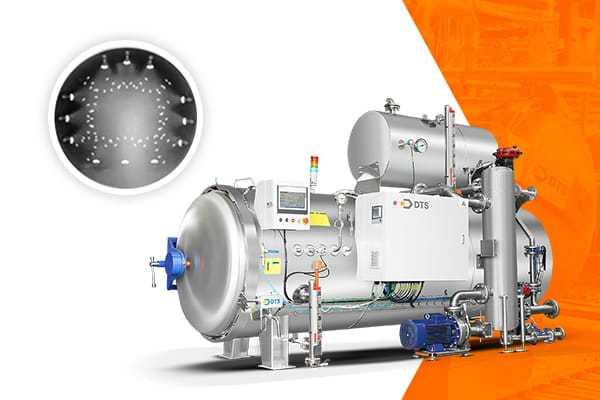

How Our Water Spray Retort Machine Works

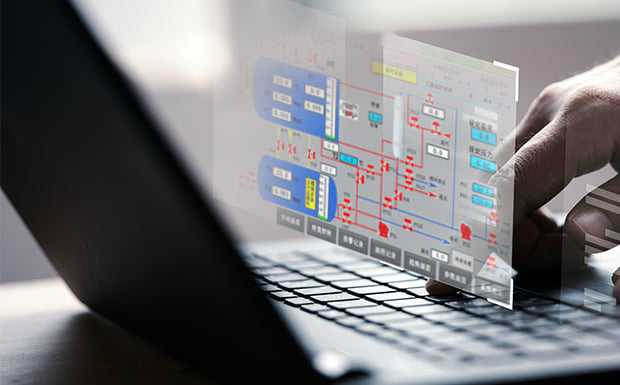

The sterilization process is automatically carried out according to the recipe inputted to the micro-processing controller PLC.
Keep an appropriate amount of water in the bottom of retort. If needed, this water can be injected automatically at the beginning of the heating stage. For hot-filled products, this water can be preheated in the hot water tank, and then injected. During the whole sterilization process, the water is pumped through the water tubes and nozzles distributed in the retort, and circulated repeatedly. Water sprayed in the form of vapor mist, which is uniform distributed in the retort to heat the products. This ensures an even distribution of heat.
During the stage of coming up and cooking, the valves are automatically controlled by the program, and introduce steam into the primary loop of heat exchanger. The temperature is adjusted according to the set value of temperature. Condensate water is automatically discharged from the trap. Since the condensate water is not polluted, it can be transported back to the boiler for use.

Working Principle

Certificates
Our Commitment To Quality, Safety & Sustainability

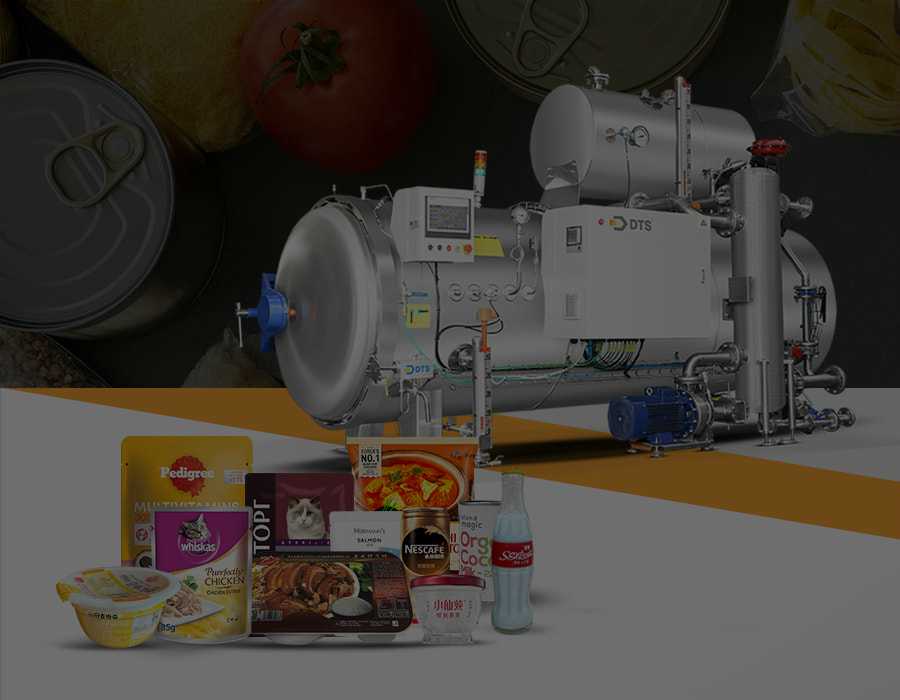

Water Spray Retort Machine
DTS water spray retort is a highly efficient, fast and uniform sterilization method under counter-pressure conditions.
View This Machine
Cascading Retort Machine
DTS water spray retort is a highly efficient, fast and uniform sterilization method under counter-pressure conditions.
View This Machine
Side Spray Retort Machine
DTS water spray retort is a highly efficient, fast and uniform sterilization method under counter-pressure conditions.
View This Machine





Quality Assurance


R&D Capability


After-sales Service
FAQ of DTS Water Spray Retort
I am interested in your product, could you please send catalogue or website to me?
Our company has 24 year experience, and customers spread to 45 countries, cooperated with Nestle, Bonduelle, Budweiser, Dole, Shineway and other group companies. For knowing more about DTS, please kindly check attached our catalogue and presentation.
How long about the process time?
Normally this should be provided from your side, but according to our experience, it’s around 60min.
Which kind retort is suitable for our product?
Could you please tell me your product, packaging, packaging size and other basic information? And did you used retort before?
How much steam, water will consume for this retort?
I will send you the utility consumption in the proposal.
Your competitors offer us 7 days of free installation and debugging, can you provide it too?
Yes, we can provide 7 days of free installation and debugging(different customers need specific analysis).
How long is the delivery time? Can it be shortened?
Could you please tell me when do you plan to use the machine? Is it urgent or not? Normally we require 4 months, but if it’s urgent for you, I will talk with our production manager
What is your after sale service?
Our service team consists of 20 engineers can provide customers with one-to-one timely and effective 7*24 remote online services. Providing training services for customers personnel to DTS. We have agencies in 16 countries.
Do you have any local service?
Yes, we can provide the before and after sale service in your country. If you need any more information about the machine, you can contact them or me, we will do our best to meet your needs.
Please feel free to let us know if you need any help? we will provide a professional guidance for you!
